ALTUM EYEBALL SERIES
| MODEL NO. | WATTAGE | INPUT VOLTAGE | OUTER SIZE | CUTOUT | CCT | BEAM ANGLE |
|---|---|---|---|---|---|---|
| ALTUM-EB05W | 5W | 90-265V | 95 x 50 | 80 mm | 2700-6500 | 15 degree |
| ALTUM-EB10W | 10W | 90-265V | 95 x 60 | 80 mm | 2700-6500 | 15 degree |
| ALTUM-EB15W | 15W | 90-265V | 95 x 80 | 80 mm | 2700-6500 | 15 degree |

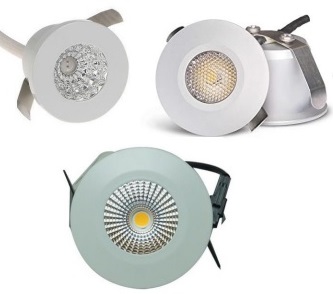

ALTUM SPOT SERIES
| MODEL NO. | WATTAGE | INPUT VOLTAGE | OUTER SIZE | CUTOUT | CCT | BEAM ANGLE |
|---|---|---|---|---|---|---|
| ALTUM-SP01W | 1W | 90-265V | 40mm | 30 mm | 2700-6500 | 10/15 |
| ALTUM-SP02W | 2W | 90-265V | 40mm | 30 mm | 2700-6500 | 10/15 |
| ALTUM-SP03W | 3W | 90-265V | 45mm | 30 mm | 2700-6500 | 10/15 |

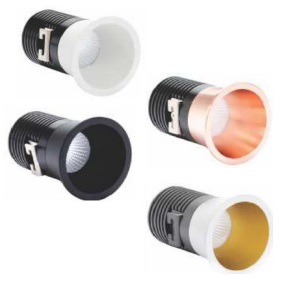

ALTUM DEEP CONE SPOT LIGHT SERIES
| MODEL NO. | WATTAGE | INPUT VOLTAGE | OUTER SIZE | CUTOUT | CCT | BEAM ANGLE |
|---|---|---|---|---|---|---|
| ALTUM-DCSP06W | 7W | 90-265V | 40 X 55 | 35mm | 2700-6500 | 24 degree |
| ALTUM-DCSP12W | 12W | 90-265V | 59 X 82 | 55 mm | 2700-6500 | 36 degree |
| ALTUM-DCSP18W | 18W | 90-265V | 74 X 93 | 70 mm | 2700-6500 | 60 degree |
